| CHARACTER | UNITS | NORMAL VALUE |
TEST METHOD |
STANDARD LIMITS |
|---|---|---|---|---|
| EXPOSURE: | mm(in) | 149(57/8) | - | - |
| TEAR STREGTH: | g | PASS | ASTM D 1922 | ΜΙΝ: 1700 |
| HEAT RESISTANCE: | - | PASS | - | 90° C (192° F) |
| STABILIZED BITUMEN WEIGHT: | g/m² (Ibs/100ft²) | PASS | ASTM D228 | ΜΙΝ: 2000(41) |
| GRANULE RETENTION: | % | PASS | ASTM D4977 | MIN: 90 |
| FIRE RATING: | - | CLASS A | ASTM E108 | MIN: CLASS A |
| FIRE RATING: | - | CLASS A | ASTM E108 | MIN: CLASS A |

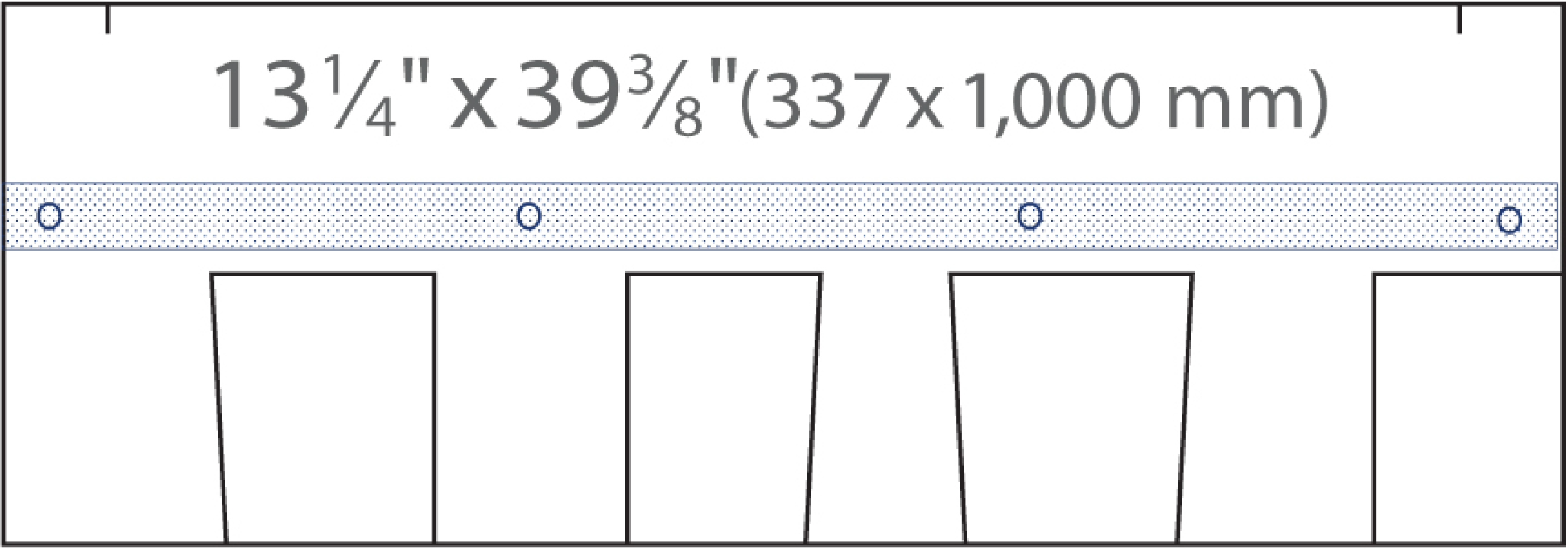

| Length /pc: | mm(in) | 1000(39.77) | - | - |
| Width /pc: | mm(in) | 340(13.38) | - | - |
| Quantity/Bundle: | Pcs | 16 | - | - |
| Weight/Bundle: | kgs(lbs) | 29(63.934) | - | - |
| Coverage/Bundle: | m2 | 2.323 m² | - | - |
| Thickness: | mm | 3.8+3.8-7.6 | - | - |

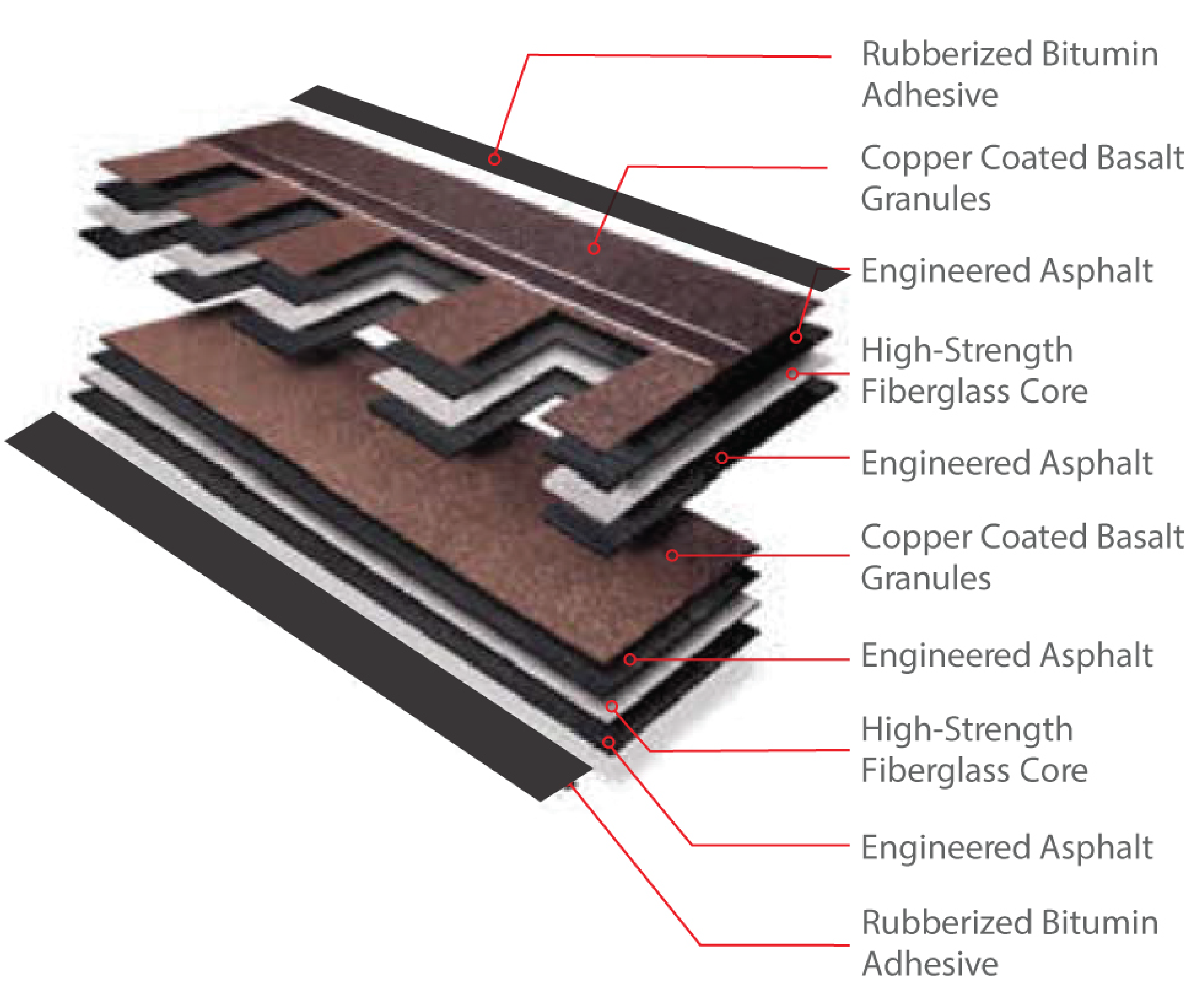

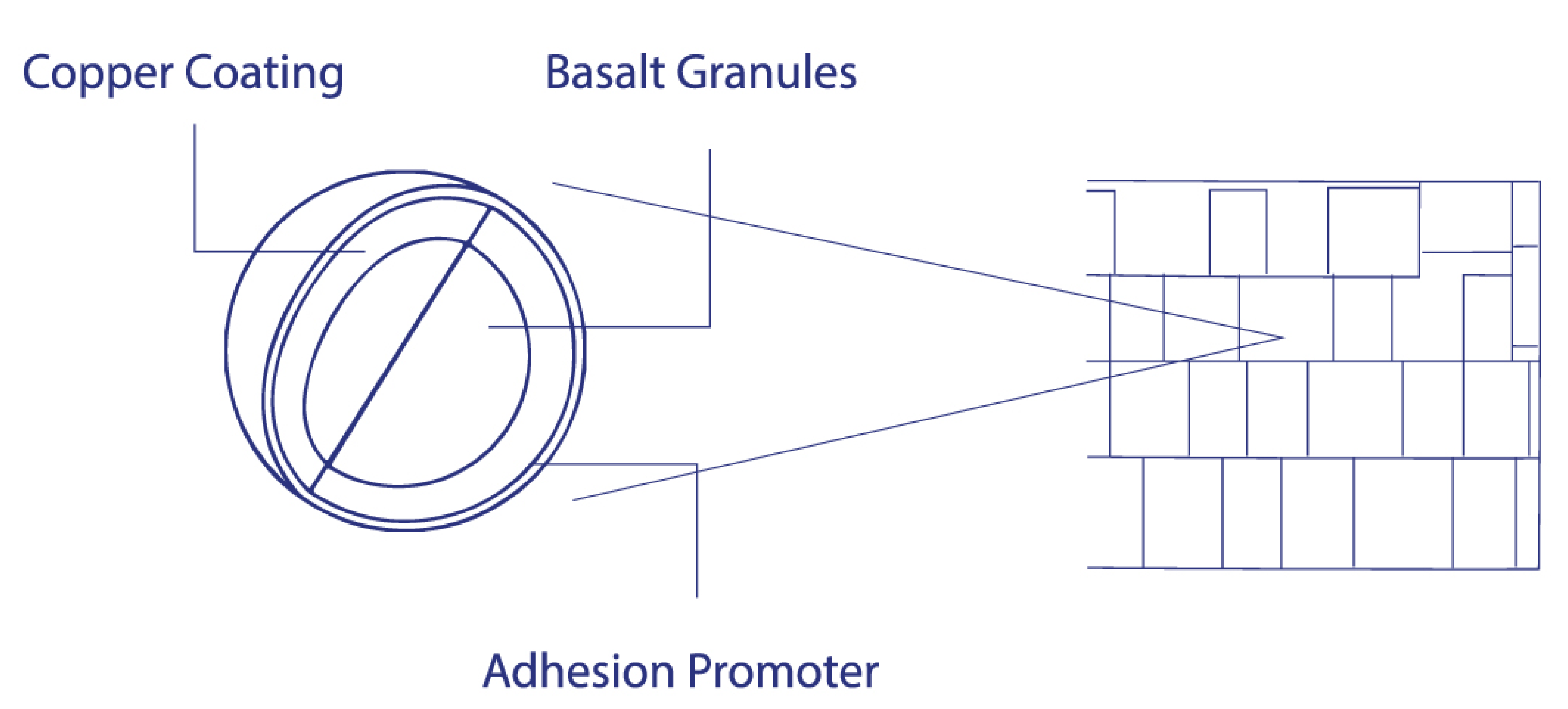

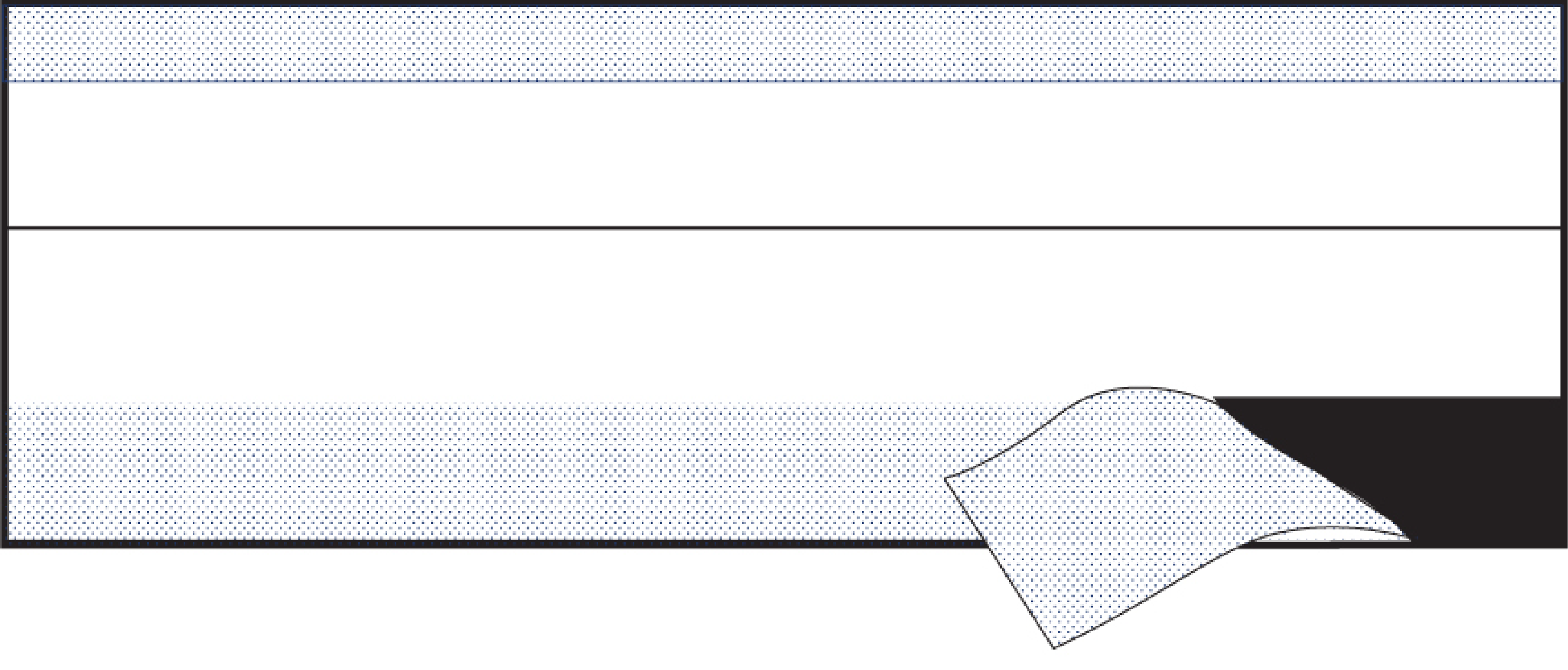

Crocotile ultra HD laminated shingle is composed of a dimensionally stable non-woven glass fiber mat, which isthoroughly impregnated with stabilized waterproofing bitumen. Crocotile ultra HD is distinguished ake-look de by its random shake-look design, unique high contrast dual band shadow coluration, and superior thermally activated shingle sealant. basalt granules surface the top of both layers of this shingle to protect the asphalt from ultraviolet radiation, Each shingle has minaral powder applied under side, thus preventing any sticking in the bundle. Crocotile ultra HD is suitable for application on roof slopes greater than 4:12 underlayment is strongly recommended for slops below 6:12. They may also be applied on low slope roofs (2:12 to 4:12) providing the deck is coverd with two plies of felt or one ply any Ice and water protector. This shingle conforms to requirements of, ASTM D3018, ASTM E108 Class A, ASTM D3462 ASTM D3161 ClassF, ASTM D7158 Class H, and achives FM4473 Class 3 impact resistance testing, Crocotile ultra HD laminatedShingles are producedand desiged with consideration for environmental responsibility and sustainability, incorporating quality recycled components whenever possible, manufactured in fecilities that complywith the most stringent government environmental regulations, and can therefore be a part of any green construction project.
35-year Ultra HD Algae Protection Limited Warranty against blue-green algae discoloration is available only on products sold in packages bearin Ultra HD logo. See Crocotile Shingle & Accessory Limited Warranty for complete coverage and restrictions and qualifying products. Penodically tested by independent and internal labs to erisure compliance with ASTM D3462 at time of manufacture
